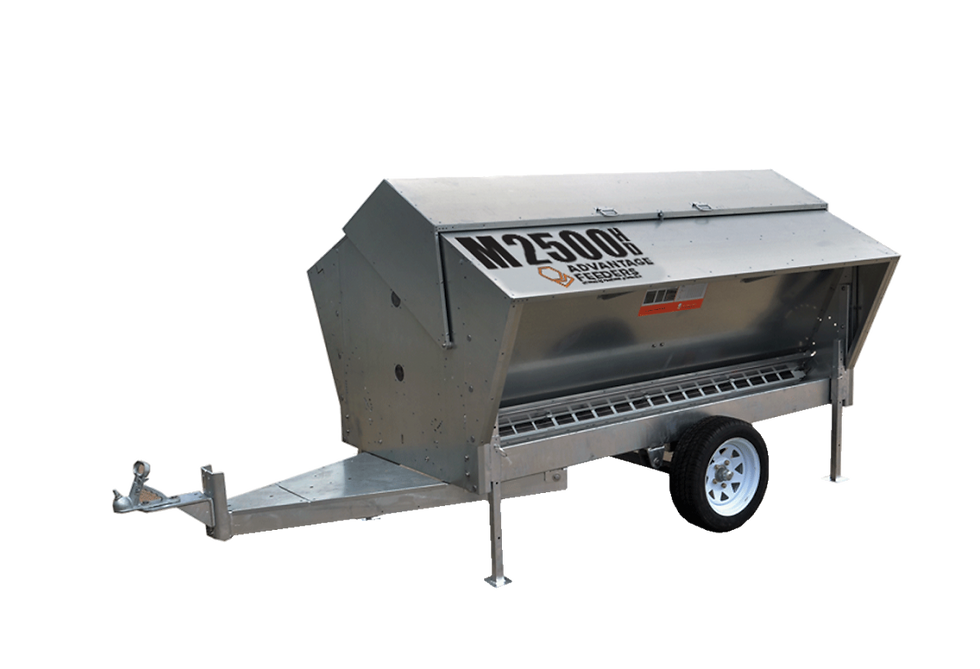

M2500HD - Advantage Feeder w/Wheels

Weight: 1200lbs

Dimensions: 12’0″ x 5’5″ x 4’9″ (LxWxH)

Feed Volume: 51 bu

Feed weight – wheat/corn:1.5 tons

Feed weight – barley/pellets:1.3 tons

Feed weight – oats:1.1 tons

Tire size:195/55R13C

Recommended Stock per Feeder:

Cattle: 50

Sheep/Goats: 150

• Reinforced stainless steel troughs

• Reinforced stainless steel upper adjusters

• Reinforced stainless steel lower adjusters

• 2x adjuster guards standard

• Adjuster guard housing when not in use

• 4x 1.5″ SHS stands

• High stability with hopper wholly over wheels

• Spring suspension

• Three axle height options

• Channel reinforced trough

• Z275 sheetmetal

• 45 degrees angled trough

• 4″ feed flow area

• Rain protection reinforcing

• Side wall bracing

• Channel roof pivot bracket

• 6x adjuster braces

• Dual tab adjuster braces

• 4x locking bolts on the lower adjusters

• Adjuster guard locking system

• Dual positioned adjuster guard for dusty feeds

• 4x 3″ round sight glasses

• Vertical side wall bracing for easy feed flow

• 2x volume stickers

• Adjuster feeder height in just 30 minutes

• Cleaning tool supplied

• Tube spanner supplied

• Secure housing for tools

• 2x new tyres

• Pivot up jockey wheel bracket

• Cast iron wheel on jockey wheel

• 2x safety chains supplied

• 94″ trough length

• Painted notch system on the adjusters

• Drop lock pin roof locking system

• Deep 4.5″ trough depth

• Gutters on side walls drain out of feeder

• Weather protection over the troughs

• Reinforced roof edges

• Mineral attachment option

• Calf creep feeding gate option

• Lamb creep feeding panel option

• Rubber mat option

• Standard operating procedure supplied

• User guide supplied

• Trial reports available
